50mm Sphere Test Probe A with Baffle and Handle

Specification:

IP1X Probe A /Test Probe A
1, According to: IEC 61032:1997 / IEC 60529:2001.
2, Test Probe A is necessary appliance for household and similar electrical appliance of against electric shock protection test.

Technical Parameters:
1. Ball Diameter: 50 mm
2. Baffle Plate Diameter: 45 mm
3. Baffle Plate Thickness: 4 mm
4. Handle Diameter: 10 mm
5. Handle Length: 100 mm

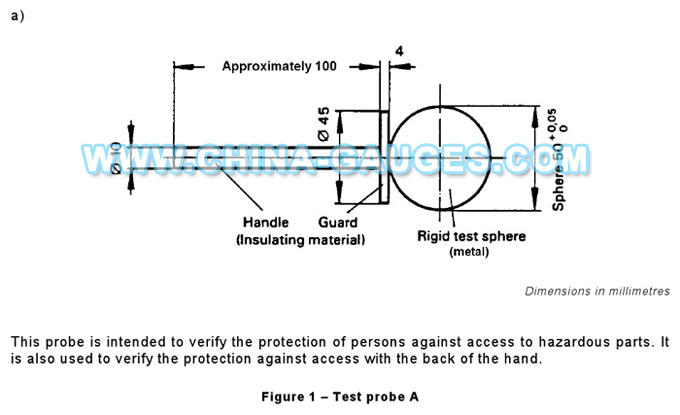

6. According to IEC 61032 figure 1 (the Test probe A), table 6 IEC 60529 the first characteristics (1)
