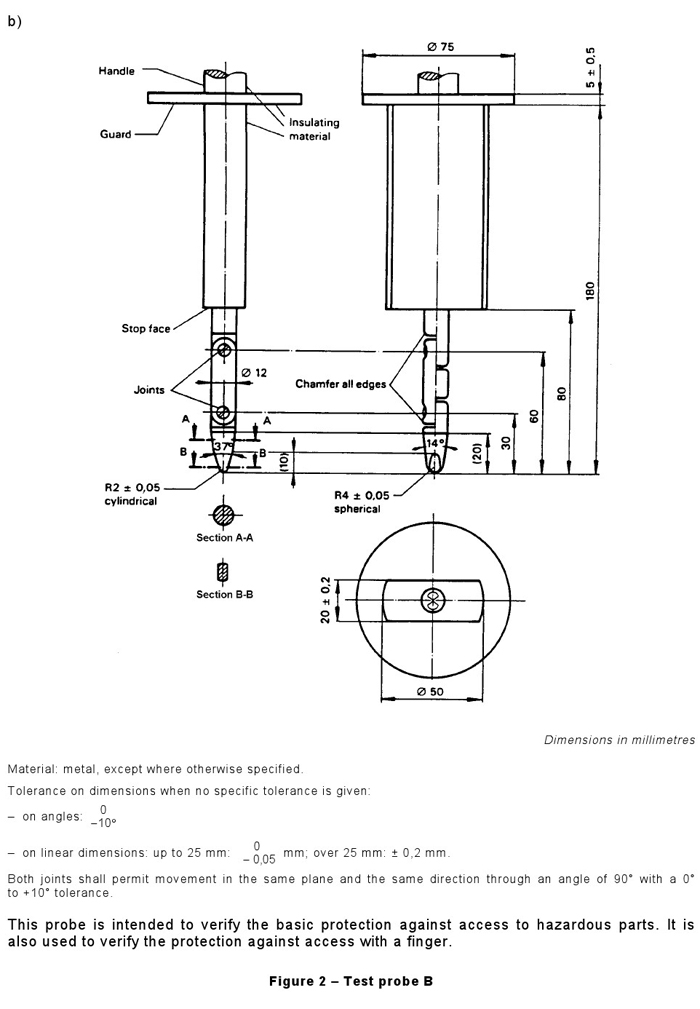

The Jointed Test Finger is a precision test probe made according to Figure 2 (Fig. 2) of the IEC 61032 (Test probe B) with 50N Thrust and is used to simulate a human finger. It is also used by the standards of CSA, IRAM, UL. IEC 60335.

Technical Parameters:

1. Knurled Finger Diameter: 12 mm

2. Knurled Finger Length: 80 mm

3. Baffle Plate Diameter: 50 mm

4. Baffle Plate Length: 100 mm

5. Baffle thickness: 20 mm

6. Thrust Levels: 10N / 20N / 30N / 40N / 50N

Application:

1. The joint part of The Standard Test Knurled Finger Probe can't touch the live parts or close to the dangerous parts, and 50 mm to 20 mm baffle plate cannot enter.

2. In the prevent electric shock test, wirings , power devices, and lighting devices are needed.
