Small Finger Probe 8.6 Test Probe 18 of IEC 61032

Conforms to Standard IEC 61032-1997.

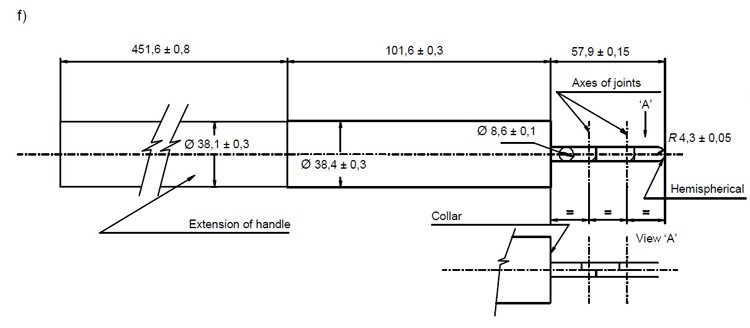

IEC 61032 Figure 12 – Test probe 18 (small finger probe ? 8.6)

– Finger: metal material

– Handle: insulating material

Technology Parameter:

Knurled finger diameter: 8.6 mm

Head radius: 4.3 mm

Knurled finger length: 57.9 mm (three knurls,19.3 mm/knurl)

Both joints shall permit movement in the same plane and the same direction through an angle of 90°.

This probe is intended to simulate access to hazardous parts by children of more than 36 months and less than 14 years.
